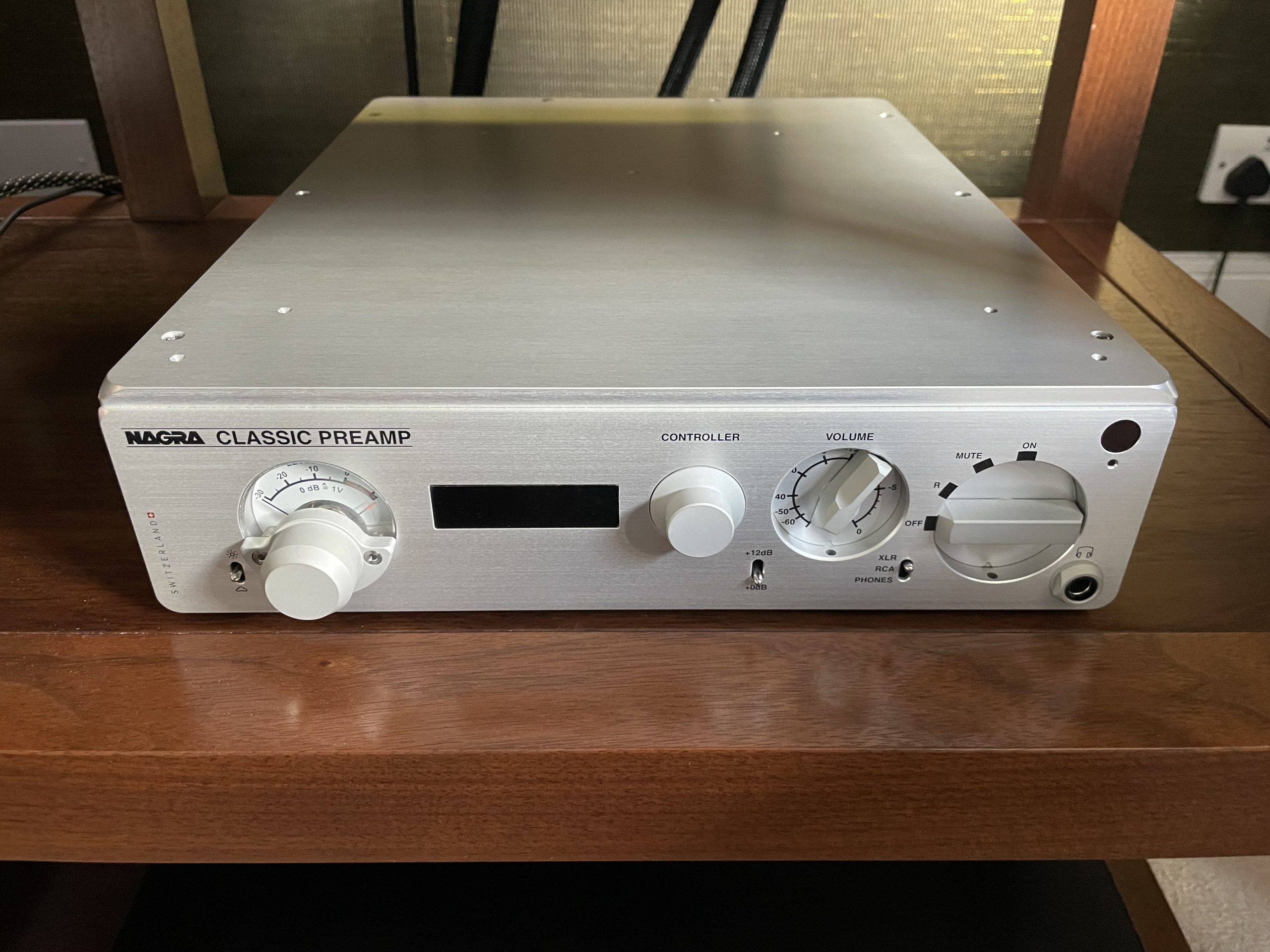

Nagra classic preamp including balanced output transformers (ex-dem)
TECHNICAL SPECIFICATION
ELECTRONICS
Frequency response: 10 Hz – 50 kHz (+0 / -0.5 dB)
Dynamic range: >125 dB (Gain at +12 dB)
Minimum input level to reach 0 dB (meter): 0.28 V rms (Gain at +12 dB)
Maximum input level to reach 0 dB (meter): >25 V rms (Gain at 0 dB)
Crosstalk: >85 dB
Total harmonic distortion (THD): <0.01% at 1 kHz out, no load
Input impedance: 50 KΩ
Output impedance: High mode: 24Ω / Low mode: 6Ω
Vacuum tubes (selected by Nagra Laboratory): 2x 12AX7 / ECC83
1x 12AT7 / ECC81
Power consumption: 12 V 1040 mA
< 1o mW in standby
Power supply: 115 V or 230 V AC input
CONNECTIONS
Inputs: XLR
RCA 1 to 4
Outputs: 2 x XLR
1 x RCA
GENERAL
Dimensions: 350 (390 from nose of the modulometer to back of the connectors) x 277 x 80mm (15.4 x 10.9 x 3.2 inches)
Weight: 4.9 Kg (10.8 lbs)
VFS Platform not included in the sale but can be purchased separately.
Sale Price £14,803.00
